Godfried-Willem RaesPIC firmware diary |
features implemented | board used | processor | composers manual |
|
| 1.1 |
<Aeio>: midi parser last update: 25.09.2010, version 1.6 - now obsolete |
midi I/O parsing and lites | Amicus board | 18F25K20 | ||
| 1.2 |
<Aeio> : Midi parser Version 2.0: 07.11.2017 |
midi I/O parsing with double buffering keyboard display |
Aeio-parser board |
24EP128MC202 | ||
| 1.3 |
<Aeio>: Lights processor last update: 22.10.2017, version 1.0 |
6 lites with flashing |
Aeio-parser board |
18F2520 | ||
| 1.4 |
<Aeio>: Radar interface for gesture sensing
Version 1.0: 07.11.2017 |
Radar sensor with 12-bit ADC midi I/O parsing 5 embedded compositions |
Radar_3_2017 board | 24EP128MC202 | ||
| 1.5- 1.16 |
<Aeio>: dsPIC boards - string drivers coded by Johannes Taelman last update: 2010 |
2-phase PWM hammer driver damper driver |
dsPIC30F3010 | |||
| 2.1 | <Bono>: Hub board | lights | midi-hub | 18F2525 | ||
| 2.2 | <Bono>: Valve board |
valve lookup pulse timing |
pulse-hold board | 18F2525 | ||
| 3 |
< Bomi>: Hub last update: 29.05.2011 |
tremulant and valve positioning | midi-hub | 18F2525 | ||
| 4.1 |
<Thunderwood>: Extra board last update: 28.05.2011 |
PWM squaekers P-channel Mosfets |
prototype | 18F2520 | ||
| 4.2 |
<Thunderwood>: Storm wind controller update: 28.05.2017 |
3-phase 400Hz motor control | 24EP128MC202 | |||
| 5 |
<Pedal> - version 2005 - obsolete updated version: see under nr.37.-11 (2016) |
PWM Light |
LPT Board | 18F2525 | ||
| 6 | <Puff>: sensor & eyes board |
4 digital Input, PIR sensors stepper motor positioning control |
midi-hub | 18F2525 | ||
| 7 | <Ob> |
positioning control analog tilt sensor bipolar motor drive |
midi-hub | 18F2525 | ||
| 8 |
<Korn>: horizontal movement last update: 29.05.2011 , version 1.4 |
two analog Namur proximity sensors two PIR sensors stepper motor positioning |
midi-hub | 18F2520 | ||
| 9 | <Vibi> |
rotation and positioning of tremolo valves 4 PWM lights + key pressure flash |
dual processor prototype board | 2 x 18F2520 | ||
| 10.1 |
<Fa>, movement & lites Version 1: 25.05.2011 (positioning control, analog tilt sensor, bipolar drive) last update: 09.03.2020 (Version 2) |
automated eyes lights |
midi-hub | 18F2525 | ||
| 10.2 |
<Fa>, valves last update: 20.01.2012 -Version 1.7 |
valve control fingered vibrato |
28-output board rev.2, 03.2007 |
18F4620 | ||
| 10.3 |
<Fa> movement and motor control last update: 02.11.2016 |
positioning control analog tilt sensor bipolar DC motor drive |
motor control board |
18F2525 | ||
| 11.1 |
<Spiro> Midihub board last update: 16.07.2011 |
2x PWM Lights |
midi-hub | 18F2525 | ||
| 11.2-5 |
<Spiro>, velo/hold boards each board controls 14 notes. last update: 31.07.2011 - JT coding |
pulse/hold | pulse/hold board rev.2, oct.2006 | 18F4620 | ||
| 12 |
<IcePal>, Ijspaleis robot for Laura Maes source code at: www.logosfoundation.org/elektron/IcePal/ last update: 02.11.2011 - Version 1.4 |
3 drippers 5 FSR's analog in Motor control PWM Midi I/O |
Amicus board | 18F25K20 | ||
| 13.1 |
<Synchrochord> autotuner board controls the autotuning mechanism last update: 14.11.2011 |
1 tacho analog in 1 frequency counter Midi I/O PID regulation |
prototype board | 18F2525 | ||
| 13.2 |
<Synchrochord> velo/hold board controls the 12 fingering solenoids on the frets last update: 24.01.2012- Version 1.2 |
12 solenoids global PWM Midi I/O Lookup tables |
pulse/hold board rev.2, oct.2006 | 18F4620 | ||
| 13.3 |
<Synchrochord> midi-hub board controls the damper and the amplitude solenoids last update: 24.01.2012 |
2 softshift solenoids with PWM Midi I/O |
midi-hub | 18F2525 | ||
| 13.4.0 |
<Synchrochord> synchronous motor control board with H-bridge drivers last update: 05.02.2012 firmware o.k. but hardware fails on the bridge drivers. Replaced with an IB106 motor controller (13.4.1) |
3 phase frequency generator with controllable phase and PWM Midi I/O Intel 82C54 timer |
prototype board | 18F4620 | ||
| 13.4.1 |
<Synchrochord> synchronous motor control board for steering a motor controller with ramping and braking. last update: 07.03.2012 |
precision frequency generator stroboscope Midi I/O Intel 82C54 timer |
prototype board | 18F4620 | ||
| 14 |
3-channel frequency synthesizer/ 3-phase motor controller Laboratory tool - uncommissioned yet |
Midi I/O Intel 82C54 timer |
etched single sided board | 18F4620 | ||
| 15 |
<Polymetronome> last update 29.05.2012 |
Midi I/O Centronics port |
etched single sided board, 05.2012 | 18F2525 | ||
| 16.1 |
<Klar> fingerboard last update 06.09.2012- Version 1.1 source code |
fingering lookup tables fingered vibrato lights |
28-output board rev.2, 03.2007
|
18F4620 | ||
| 16.2 |
<Klar> midihub board 07.09.2012- Version 1.1 last update 14.10.2021- Version 1.2 source code |
Tilt Sensor input (10bit ADC) Stepper Motor control lights + PWM |
midi-hub
|
18F2525 | ||
| 16.3 |
<Klar> wave generator |
Arm discovery board | ARM STM32F407 | |||
| 17.1 |
<Temblo> midihub board last update 19.02.2013 - Version 1.0 |
lights + PWM power relay |
midi-hub, rev.3 | 18F2525 | ||
| 17.2 |
<Temblo> pulse board last update 24.02.2013 - Version 1.1 |
12 pulse outputs multitasking code |
midi-pulse 16 output board |
18F2525 | ||
| 18.1 |
<Horny> midihub board last update 05.07.2013 - Version 1.4 |
bidirectional movement solenoid (PWM) valve solenoids lights |
midi-hub, rev.4, 05.2013 | 18F2525 | ||
| 18.2 | <Horny> wave generator | Arm discovery board | ARM STM32F407 | |||
| 19.1 |
<Asa> midihub board last update 13.06.2013 - Version 1.0 |
movement solenoids (PWM) lights (4) |
midi-hub rev.4, 05.2013 |
18F2525 | ||
| 19.2 |
<Asa> fingerboard last update 16.06.2013 - Version 1.0 |
fingering lookup tables fingered vibrato lights (4) |
28-output board rev.2, 03.2007 |
18F4620 | ||
| 19.3 | <Asa> wave generator | Arm discovery board | ARM STM32F407 | |||
| 20.1 |
<Whisper> midihub board last update 12.12.2019 - Version 1.6 |
2 motor PWM 6 periodic timers 1 AC relay |
midi-hub, rev.4 | 18F2525 | ||
|
20.2 20.3 20.4 20.5 |
<Whisper> Quad PWM board update: 20.08.2013 - Version 1.3 update 23.04.2015 - Version 1.4, Updated compiler, Whisper repair update 12.12.2019 - Version 1.6 |
8 motor PWM 2 shakers (PIC4 only) |
quad PWM Whisper board, version 1.0 | 4 x 18F2525 | ||
| 21 |
<Ice 2> audio art installation by Laura Maes last update 23.09.2013 - Version 1.2 |
4 solenoid valves 4 analog input 1 digital input midi I/O |
midi-hub, rev.3 | 18F2520 | ||
| 22.1 |
<Vacca> midihub board 28.10.2013: Version 1.0 last update: |
power relais 5 lights 2 PWM |
midi-hub, rev.4 | 18F2525 | ||
|
22.2 22.3 22.4 |
<Vacca> pulse boards programmed by Johannes Taelman (2005) |
16 pulse solenoids | midi-pulse 16 output board | 18F2525 | ||
| 23 | <Rodo> | |||||
| 23.1 |
<Rodo> midihub board no longer used since 2017 as we now pass midi through the radar boards. |
metacontrol 2 PWM |
midi-hub, rev.4 | 18F2525 | ||
|
23.2 23.3 23.4 23.5 |
<Rodo>: pulse boards beaters 13.03.2014: Version 1.2 <Rodo>: pulse boards dampers 15.03.2014: Version 1.2 |
31 beater solenoids lights 31 damper solenoids lights
|
28-output board rev.2, 03.2007 |
18F4620 | ||
| 23.6 |
<Rodo>: e-drive board programmed by Kristof Lauwers Version 1.0: 04.04.2014 [ now obsolete and removed in 2017] |
midi synth | AXOLOTI board |
ARM STM32F407 |
||
| 23.7 |
<Rodo>: e-drive board Version 1.3: 21.03.2017 |
12-bit ADC note generator ADSR |
Rodo board |
24EP128MC202 | ||
|
23.8 23.9 |
<Rodo>: radar gesture sensing boards (2) Version 2.0: 07.12.2020 |
12-bit ADC midi parser |
Rodo Radar Board |
24EP128MC202
|
||
| 24.1 |
<Snar_2>: Midi Hub board |
snares - pwm rimshots lights |
midi-hub, rev.4 | 18F2525 | ||
| 24.2 |
<Snar_2>: beaterboard |
13 beater solenoids
|
28-output board rev.2, 03.2007 or pulse/hold board rev.2,10.2006 |
18F4620 | ||
|
25.1 25.2 25.3 25.4 |
<4 Digit Display> (2 copies made, A and B)
29.07.2014 Version 1.5 |
4 7-segment displays with dot counter ASCII-mode stopwatch bargraph |
special display board version 1.0 - gwr 02.05.2014 version 2.0 - gwr 29.07.2014 |
4 x 18F2525 | ||
|
26.1-6 26.7-11 |
<Zi>
10.07.2014: Version 1.1 [this version was unworkable for hardware reasons, the firmware is o.k.] 08.11.2015: Version 2.0 |
bidirectional solenoids for plucking strings with hold. bidirectional solenoids with permanent magnet hold |
6 pulse/hold boards rev.2.10.2006
5 8-output bidirectional H-bridge boards rev.1.0 03.10.2015 |
6 x 18F4620
5 x 18F2525 |
||
| 26.7 |
<Zi> hub board
|
pwm lights |
midi-hub, rev.4 | 18F2525 | ||
| 27 |
board test and evaluation code: pluckers/shakers 20.11.2016: This board used for the <Bug> robot (valves and lights)- see nr. 45 now. |
bidirectional solenoids |
10-output pulse/hold board GWR 06.08.2014 |
18F4620 | ||
| 28 |
<Hybr> hub board Hybr also has 20 ARM discovery boards with firmware developped by Kristof Lauwers and Johannes Taelman. This runs on STM 32F407 processors and generates 40 sinewaves. 06.12.2014 : Version 1.1 |
power on relay lights |
midi-hub, rev.4 | 18F2525 | ||
| 29 |
<BalMec> - 5 modules |
|
||||
| 29.1 |
12.02.2022: Version 1.2 |
pwm analog in lights |
Propeller board V1.1 2015 / 2022 |
18F2525 | ||
| 29.2 |
pwm analog in lights |
Propeller board V2.0 2015 |
18F2525 | |||
| 29.3 |
pwm brake control analog in lights |
Propeller board V3.0 2015 |
18F2525 | |||
| 29.4 |
<Bello> , Bell machine
31.03.2015: Version 1.0 |
autorepeat pwm lights |
Hub board 2015 12-output pulse board 2015 |
18F2525 | ||
| 29.8 |
<Balsi> hardware failure. Firmware is o.k. |
3-phase induction motor controller | 24EP128MC202 | |||
| 30 |
<HybrHi> hub board HybrHi also has 18 ARM discovery boards with firmware developped by Kristof Lauwers and Johannes Taelman. This runs on STM32F407 processors and generates 36 sinewaves. 11.02.2015 : Version 1.0 |
power on relay lights |
midi-hub, rev.4 | 18F2525 | ||
| 31 |
<Harma> motor control board 22.02.2015: Version 1.1 |
Motor controls for Siemens controller | Motor control board V1.0 - Harma | 18F2525 | ||
| 32 |
<HarmO> motor control board 25.02.2015: Version 1.0 |
Motor controls for Siemens controller | Motor control board V1.1 - HarmO | 18F2525 | ||
| 33 |
<Dripper> pulse board 15.07.2015: Version 2.0 |
priority timers 16 solenoid valves |
16-output pulse board | 18F2525 | ||
| 34.1-6 |
<Tinti>
12.09.2015: Version 1.2 |
bidirectional solenoids for shaking bells with velo and hold. | 6 pulse/hold boards rev.2.10.2006 | 6 x 18F4620 | ||
| 34.7 |
<Tinti> hub board 12.09.2015: Version 1.2 |
pwm ctrl.66, power relay, ultrasound synthesizer, vca lights |
midi-hub, rev.4 | 18F2525 | ||
| 35 |
<Psch>
18.11.2015: Version 2.1 |
12 shakers with repeats 4 lights auto-lights CC69 |
16-output midi-pulse board (2004) | 18F2620 | ||
| 36.1-2 |
22.11.2015: Version 3.0 |
bidirectional shakers and lights | 28-output midi-pulse board | 2 x 18F4620 | ||
| 37.1 |
<Player Piano> |
power supply control (PWM) lights |
PCB PS2016 gwr | 18F2525 | ||
| 37.2-10 |
<Player Piano> pp2-2016
29.01.2016: Version 3.1 |
pulse-velo + hold priority timers velo-lookup tables |
10-output midi pulse hold board 2005, rev.2 JT | 18F2525 | ||
| 37.11 |
<Player Piano> pp2-2016 Pedal 07.02.2016: Version 3.1 |
2 channel PWM 2 lights velo,hold, pwm and slow release |
PCB Pedal2016 gwr | 18F2525 | ||
| 38.1 |
<Chi> Ultrasound demodulation board 18.03.2016: Version 1.1 |
US-PWM VCA Lights |
PCB Chi_US | 18F2525 | ||
| 38.2 |
<Chi> motor control 08.06.2016: Version 1.1 |
linear movement (Dunkermotor) with position tracking 2 analog inputs (Namur sensors) 2 digital inputs 1 light bidirectional solenoid 2 AC relays |
PCB_Chi_Mot | 18F2525 | ||
| 39.1 |
hub board |
power relay lights 2 DC motors |
PCB Flex-Hub | 18F2525 | ||
| 39.2 |
Frontal motor bow assembly 22.06.2016: Version 1.2 |
stepper motor IB106 driver (with ramping) 2 PWM bi-dir-solenoid sensor clutch 4 lites |
Circuit drawing | 18F2525 | ||
| 39.3 |
Back motor bow assembly 21.06.2016: Version 1.2 |
stepper motor IB106 driver (with ramping) 2 PWM bi-dir-solenoid sensor clutch 4 lites |
Circuit drawing | 18F2525 | ||
| 39.4 |
e-blade bending movement 11.07.2016: Version 1.2 |
stepper motor IB106 driver (with ramping and position tracking) 3 sensors 2 PWM motor beaters 2 beaters |
Circuit drawing | 18F2525 | ||
| 39.5 |
Pi-blade bending movement 11.07.2016: Version 1.2 |
stepper motor IB106 driver (with ramping and position tracking) 3 sensors 2 PWM motor beaters 2 beaters |
Circuit drawing | 18F2525 | ||
| 40 |
PIC24 development board
04.08.2016: Version 1.0 |
12-bit ADC 3 PWM channels |
24EP128MC202 | |||
| 41 |
PIC24 Synthesizer board (Prototype)
26.08.2016: Version 1.0 |
3 voices with ADSR | 24EP128MC202 | |||
| 42.1-4 |
07.12.2020: Version 1.1 |
6 PWM channels 5 Timers individual ADSR's |
24EP128MC202 | |||
| 42.5 |
01.01.2021: V1.1 |
1 relay 4 lites midi parser |
18F2525 | |||
| 43 | Mirrored-X | midi mirror for player piano | 24EP128MC202 | |||
| 44 |
23.09.2016: Version 3.1 |
parallel bus driver with latches 10-bit PWM |
18F2525 | |||
| 45.1 |
Valves and lights board (cfr. nr 27, 2014) Version 1.0: 29.12.2016 |
3 valves (solenoids) 7 lights |
10-pulse/hold board |
18F4620 | ||
| 45.2 |
Midi Hub board Version 1.0: 29.12.2016 |
2 stepper motors 3 analog inputs midi parsed out |
Single sided hub board |
18F2525 | ||
| 45.3 |
Waveform generator - membrane compressor driver Version 1.0: 30.12.2016 |
16-bit mono synth with adsr, FM and AM | 24EP128MC202 | |||
| 46.1 |

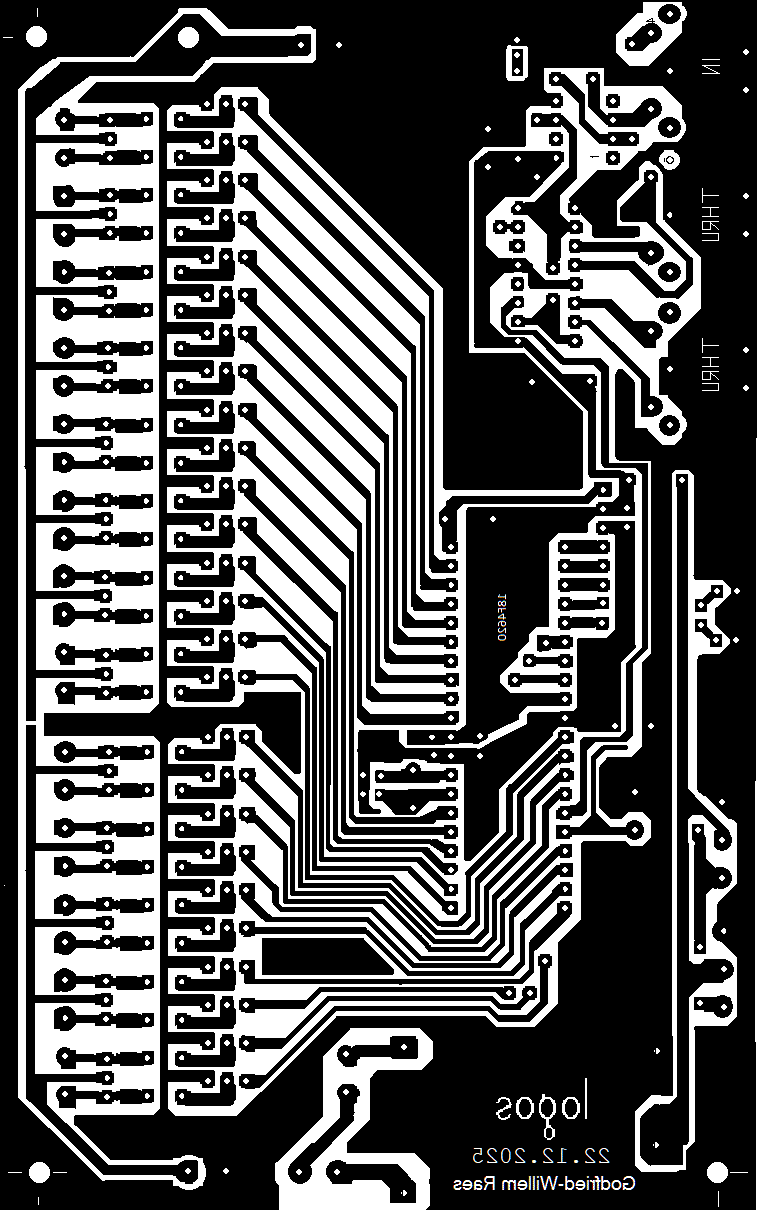

25-notes board 24.01.2017: Version 1.0 |
25-notes on/off functions & procedures coding |
Single sided hold board 26 outputs |
18F4620 | ||
| 46.2 |
<Melauton> 01.02.2017: Version 1.0 |
wind pressure sensor (10 bit ADC), 10-bit PWM motor control |
Single sided hub board |
18F2525 | ||
| 47.1-15 |
Wave generator with digital ADSR 12.03.2017: Version 1.6
|
4 x 6 PWM channels 4 x 5 Timers 12 ADSR's |
Each board has 4 microprocessors to serve a full octave, in total 15 microprocessors PCB (3 versions) |
24EP128MC202 | ||
| 48.1 |

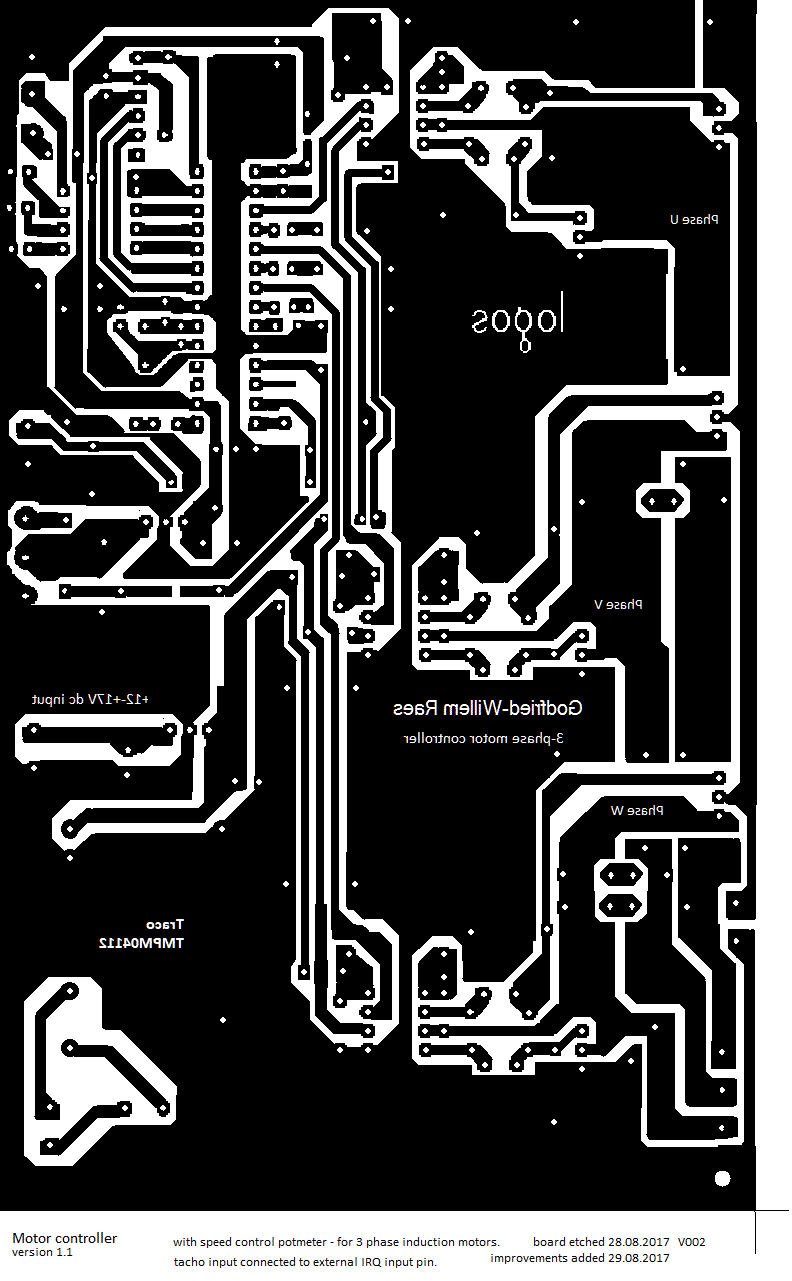

Version 1: 3-phase mains power induction motor drive 31.08.2017: Version 1.0 (never got the driver hardware to work properly) |
3-phase induction motor 1 ADC 12-bit channel 1 Tacho input abandonned for Balsi |
(different versions available, all with serious hardware problems) |
24EP128MC202 | ||
| 48.2 |
DC-motor drive for large siren (24V / 260W) with PID feedback Version 1.1: 15.01.2019 |
3 PWM outputs 1 DC motor 1 bidirectional solenoid 1 Tacho input 1 analog input |
motor control board 1 |
24EP128MC202 | ||
| 48.3 |
DC-motor drive for universal 230V motor Version 1.1: 15.01.2019 |
3 PWM outputs 1 Universal motor pwm 2 DC motor drives 1 horn
|
motor control board 2 |
24EP128MC202 | ||
| 48.4 |
midi-hub board with midi parser Source code |
1 relay 7 mosfet outputs (2 PWM) |
18F2620 | |||
| 49.1 |
16.10.2017: Revision V2.0 |
8 bidirectional solenoids | midi-pulse 16 output board (2004) with autorepeat | 18F2525 | ||
| 49.2 |
17.10.2017: Revision V2.0 |
16 pulse out | midi-pulse 16 output board (2004) with autorepeat | 18F2620 | ||
| 50.1 50.2 50.3 50.4 50.5 |
pulse-hold valve control, with automated note repetition 03.05.2018: Version 1.0
|
14 pulse-hold outputs |
5 pulse-hold boards with autorepeat |
18F4620 | ||
| 50.6 |
03.05.2018: Version 1.1 Hub board - Motor control & parser |
slow pwm motor control | 18F2525 | |||
| 51.1 |
14.08.2018: Version 1.1 hub board |
dual slow pwm motor control | 18F2620 | |||
| 51.2 |
14.08.2018: Version 1.1 12-out HV pulse-hold board |
12 pulse/hold | Circuit drawing | 18F4620 | ||
| 52.1-10 |

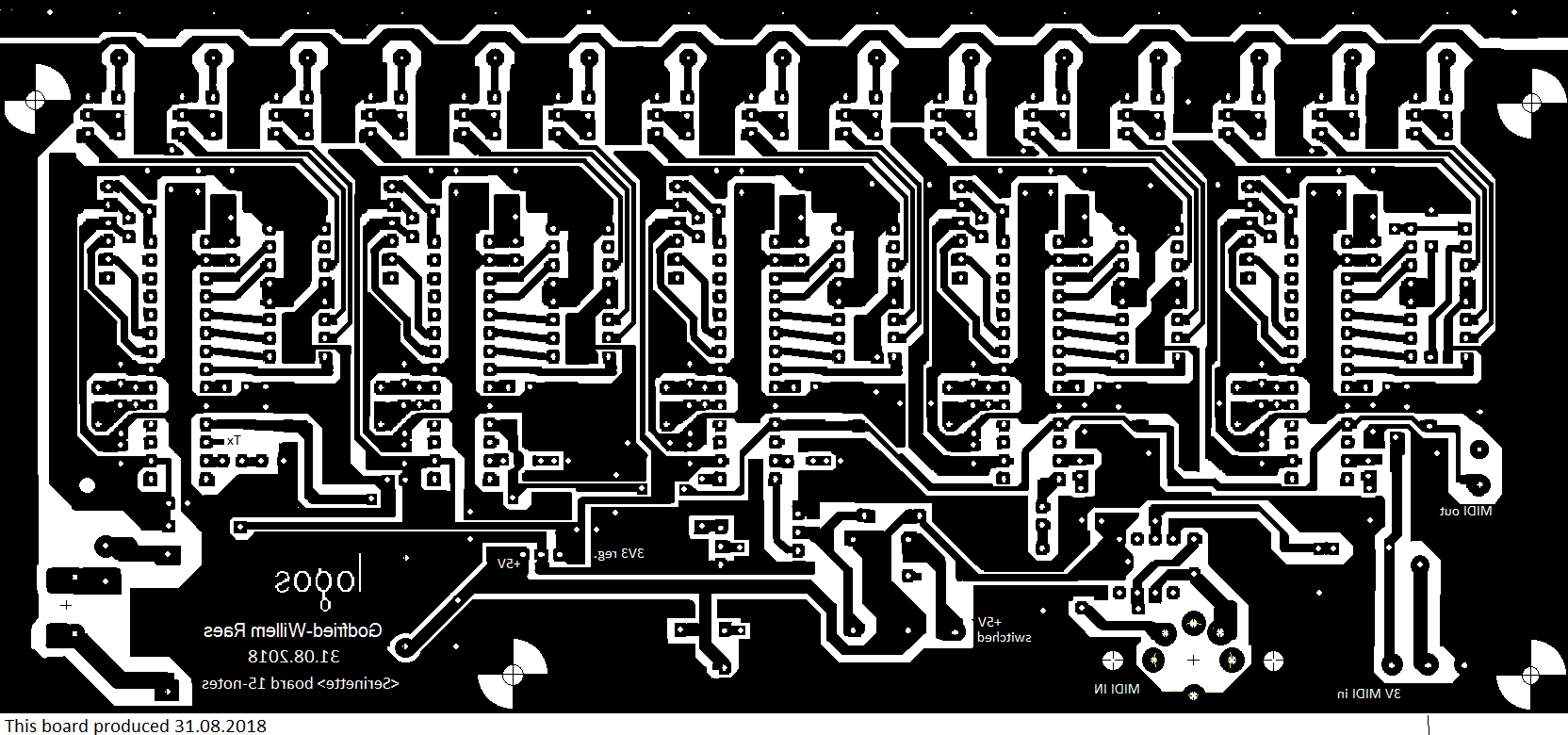

Wave generator with digital ADSR 30.08.2018: Version 1.0
|
5 x 6 PWM channels 5 x 5 Timers 15 ADSR's |
Each board has 5 microprocessors to serve 15 notes, in total 10 microprocessors |
24EP128MC202 | ||
| 53 |
PIR detector board for movement sensing 05.02.2019: Version 1.0 |
2-channel 12 bit ADC channels midi IN & OUT |
24EP128MC202 | |||
| 54 |
Midi to Centronics printer port interface 10.04.2019 Version 1.0 |
LPT-port (bidirectional) Midi In Midi Out |
18F4620 | |||
| 55.1 |
Midi-hub board 22.05.2023: Version 1.2 |
1 relay 7 mosfet outputs 1 optorelay |
18F2620 | |||
| 55.2 |
27.06.2020: 12-pulse/hold output board - Version 1.0 - now used for <RorO> - see nr.56.4 new version available for <Rumo> - not yet used |
12 outputs |
PCB 12 out pulse/hold board Circuit drawing |
18F4620 | ||
| 55.3 |
<Rumo> - coffee roaster Nestor Martin 08.10.2020: DC-motor control board - Version 1.3 |
14-bit PWM motor control with ramping | 24EP256MC202 | |||
| 55.4 |
<Rumo> Whisper2-component 8-channel PWM-Fan driver Version 1.0, 25.05.2020 Version 1.1: 23.05.2023 |
quad PIC board 8 8-bit.25kHz PWM 2 shakers |
4 x 18F2525 | |||
|
55.5 was 68 = 62.2 |
<Rumo> Clay bell motor (2023) (same board as used for hunting horn - Belimo motor) pcb made 25.12.2020 Version 1.0 - 19.03.2023 |
2 bulbs 2 relays |
18F2525 | |||
| 55.6 |
<Rumo> - hooter module synth 1 Version 1.0: 20.05.2023 |
3 hooters ABT416 drivers |
24EP128MC202 | |||
| 55.7 |
<Rumo> - hooter module synth 2 Version 1.0: 22.05.2023 |
3 hooters IR2104 drivers |
24EP128MC202 | |||
| 55.8 |
<Rumo> - claxons and shakers module Version 1.0: 23.05.2023 |
8 pwm channels 2 pwm channels |
<Sire> board |
18F2620 | ||
| 55.9 |
<Rumo> - pulse board
|
Circuit drawing <Sire> board |
18F2620 | |||
| 55.10 | <Rumo> Radar1 | |||||
| 55.11 | <Rumo> Radar2 | |||||
| 56.1 |
midi hub board: relay, tremulant, motor control, lights 07.04.2021: Version 1.0 |
1 relay 7 mosfet outputs Motor control |
Circuit drawing
|
18F2620 | ||
| 56.2 |
<RorO> pulse-hold boards - roerpijp register 03.05.2021: Version 1.0 source code (with metacompile statements for 4 boards) |
14 pulse/hold outputs | 18F4620 | |||
| 56.3 |
<RorO> pulse-hold boards - salicional register 03.05.2021: Version 1.0 source code (with metacompile statements for 3 boards) |
14 pulse/hold outputs | 18F4620 | |||
| 56.4 |
<RorO> Low-windchest controller board: 12 output pulse/hold board (Cfr. 55.2) 07.04.2021: Version 1.0 |
12 outputs |
PCB 12 out pulse/hold board Circuit drawing |
18F4620 | ||
| 57.1 |
frontal demper board (notes 48-65) 10.12.2019 Version 1.2 |
18 high current outputs with timers 3 lookup tables |
PCB 26 output board | 18F4620 | ||
| 57.2 |
midi-hub board Version 1.1 |
1 relay 7 mosfet outputs |
PCB (double sided) | 18F2620 | ||
| 57.3 |
frontal beater board (notes 48-65) 08.12.2019 Version 1.1 |
18 high voltage outputs with timers | PCB 18 output board | 18F4620 | ||
| 57.4 |
high beater board, notes 66-91 08.12.2019: Version 1.1 |
26 output board | PCB 26 output board V1.1 -24.09.2019 | 18F4620 | ||
| 57.5 |
high damper board (notes 66-91) Version 1.2, 10.12.2019 |
26 output board 4 lookup tables |
PCB 26 output board V1.1 -24.09.2019 | 18F4620 | ||
| 57.6 |
low vibrato DC-motor control V1.1 - 07.12.2020 |
14-bit PWM motor control | 24EP128MC202 | |||
| 57.7 |
high vibrato DC-motor control V1.1 - 07.12.2020 |
14-bit PWM motor control | 24EP128MC202 | |||
| 58.1 |
midi-hub and parser board |
18F2620 | ||||
| 58.2 |
valve control board |
14-pulse/hold board with lookup tables and fingered vibrato |
PCB |
18F4620 | ||
| 58.3 |
Version 1.0: 10.02.2020 waveform generator
|
16-bit mono synth with adsr, FM and AM | 24EP128MC202 | |||
| 59.1 |
Version 3.0, 17.02.2020 waveform generator |
16-bit mono synth with adsr, FM and AM | 24EP128MC202 | |||
| 59.2 |
Version 3.0, 18.02.2020 midihub board |
bidirectional solenoids lights PWM |
Circuit drawing | 18F2620 | ||
| 59.3 |
Version 3.0, 18.02.2020 display driver board |
synth in version 2, now only display driver | Circuit drawing | 30F3010 | ||
| 60. |

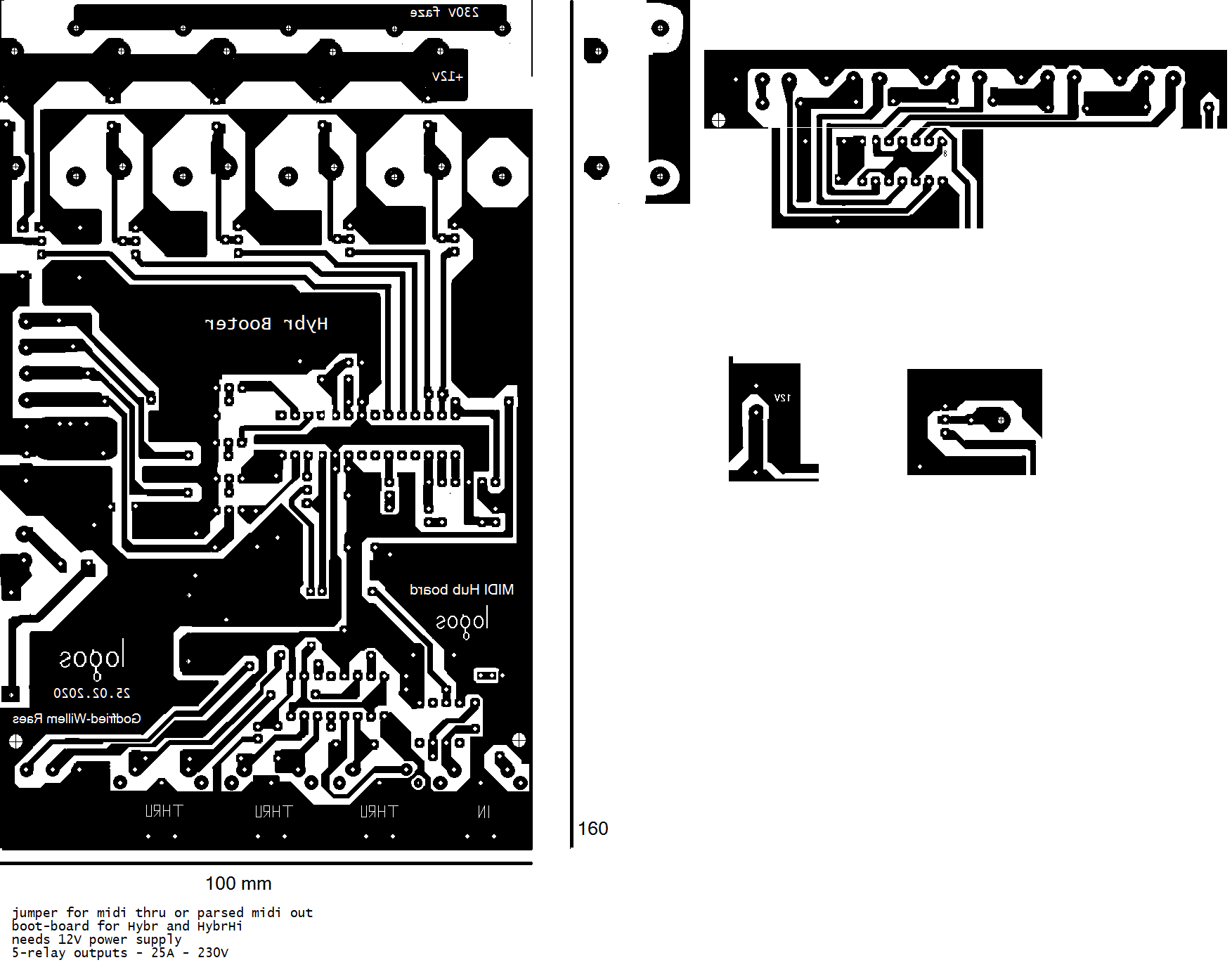

Booter and Hub parser board for Hybr and HybrHi Version 1.0, 26.02.2020 |
drives 5 power relays (230V) cold-boots the Hybr robots midi-parser lights 9-bit PWM |
18F2525 | |||
| 61.1 |
<Autosax> Version 5 - key-control boards (fingering) Version 1.0, 16.03.2020 |
each board steers 8 high voltage solenoids | 18F2620 | |||
| 61.2 |
<Autosax> Version 5- Membrane compressor driver Version 1.0, 16.03.2020 |
16-bit mono synth with ADSR, FM, AM | 2 x 24EP128MC202 | |||
| 62.1 |
<Hunt> - hunting horn compressor driver Membrane compressor driver board Version 1.0 - 19.01.2021 |
16-bit mono synth with ADSR, FM, AM | 2 x 24EP128MC202 | |||
| 62.2 |
<Hunt> - hunting horn - Belimo motor Version 1.1 - 18.01.2021 |
2pos mercury switch with debouncing 2 bulbs 2 relays |
18F2525 | |||
| 62.3 |
<Hunt> midi hub board Version 1.0 |
midi-parser | 18F2620 | |||
| 63 |
3-phase synth board as yet uncommissioned |
|||||
| 64.1 |
Membrane compressor driver board (same board as used for <Hunt>) Version 1.1: 12.07.2021 |
16-bit mono synth with ADSR, FM, AM | 2 x 24EP256MC202 | |||
| 64.2 |
Valve control board and midi hub Version 1.1: 12.07.2021 |
hub board with power relay and velo/pulse outputs for valves | Circuit Drawing | 18F2620 | ||
| 65.1 |
<Cornalto> Waveform generator / membrane compressor driver Version 1.0: 10.10.2021 |
dual PIC wavegenerator board | 2x 24EP256MC202 | |||
| 65.2 |
<Cornalto> Valve control and midi hub board Version 1.0: 10.10.2021 |
hub board with power relay and velo/pulse outputs for valves | 18F2620 | |||
| 66.1 |
<Pianet> Pulse/Hold boards ( 5 x 12 notes) |
12-output pulse hold high voltage boards | 18F4620 | |||
| 66.2 |
<Pianet> Hub and parser board Version 2.0: 22.01.2024 |
hub board with power relay and velo/pulse outputs 10-bit PWM for Vactrol VCA |
18F2620 | |||
| 67 |
2021-2024 |
|||||
| 67.1 | <Sper> midi hub boardi | hub board with relay and softshift controls for lute registers |
Circuit drawing PCB |
18F2620 | ||
| 67.2-5 | <Sper> 12-notes pulse/hold boards with soft release |
Circuit drawing PCB |
18F4620 | |||
| 67.6 | <Sper> 14-note pulse/hold board, topoctave |
Circuit drawing PCB |
18F4620 | |||
| 68 | now = 55.5 - used for <Rumo>, Clay bell | |||||
| 69 |
Version 1.0: 02.11.2021 |
hub board with power relay and velo/pulse outputs for 4 solenoids | 18F2620 | |||
| 70 |
Uncommitted as yet (uses the Sire PCB) 4 - 2 Phase Aiwa motors |
Circuit drawing | 18F2620 | |||
| 71.1 |
Version 1.2: 10.01.2022 |
Uses Sire board and L298 bridge drivers 8 solenoids with velo and dead-time autorepeats |
Circuit Drawing | 18F2620 | ||
| 71.2 |
Radar board Version 1.0: 01.2022 |
24GHz radar | 24EP128MC202 | |||
| 72.1-72.10 |
Wave generator with digital ADSR 20.03.2022: Version 1.0
|
5 x 6 PWM channels 5 x 5 Timers 15 ADSR's |
Each board has 5 microprocessors to serve 15 notes, in total 10 microprocessors |
24EP128MC202 | ||
| 73.1-72.18 |
Wave generator with digital ADSR 16.05.2022: Version 1.0
|
6 x 6 PWM channels 6 x 5 Timers 18 ADSR's |
Each board has 6 microprocessors to serve 18 notes, in total 18 microprocessors for 56 notes |
24EP128MC202 | ||
| 74.1-74.2 |
10.07.2000: Version 1.0 by Johannes Taelman
|
2 x 16 pulse outputs with death time |
18F2525 | |||
| 75.1 |
midi-hub board 06.04.2023: Version 1.1 |
stepping motor control - sensors softshift solenoid 10bit PWM lights power relay |
18F2620 | |||
| 75.2 - 75.3 |
synth board source code (compile 2 times for pitch and ampli) 05.04.2023: Version 1.0 |
dual PIC wavegenerator board | 2 x 24EP256MC202 | |||
| 76.1 |
midi-hub, motor and valve control board 14.02.2024: Version 1.0 |
board with 4 puilse/hold outputs and 3 lites slow PWM for motor control |
18F2620 | |||
| 76.2 |
synth board source code (compile 2 times for pitch and ampli) 14.02.2024; Version 1.0 |
dual PIC wavegenerator board | 2 x 24EP256MC202 | |||
| 77.1 |
midihub board 26.08.2024: Version 1.1 |
4 pull solenoids for registration 2 lites power relay midi parsing |
18F2620 | |||
| 77.2-5 |
<Cemba> pulse-hold boards source code (compile 4 times with metacompile commands) |
18F4620 | ||||
Notebook:
25.09.2010: Proton Compiler version 3.5.0.6.
21.08.2013: The code for the periodic timers written for <Whisper> is
superior to all previous implementations. So this should be applied to earlier
firmware.
23.09.2013: Periodic timers and random functions applied in <Ice2> for Laura Maes.
31.07.2014: The code for the displays contains a mechanism to let the four PIC's communicate with each other, using busy and acknowledge signals. This code also makes use of multiple main program loops.
21.04.2015: Compiler upgrade performed. Proton version 3.5.7.1 now. Proton24 compiler (version 1.0.2.8) installed as well. [ www.protonbasic.co.uk ]. Previous code needs some minor changes such as removing Reserve_Ram 256 and the High_Interrupt_Start and High_Interrupt_End lines in the IRQ driver code. Also the new compiler version does not support dword operations in an interrupt handler.
11.09.2015: The manual states an incorrect upper value for the PWM frequencies as set with the HPWM command. Further remarks in the source code for <Tinti> hub.
12.04.2016: Changing the PWM frequency changes the PWM values on both channels.
08.06.2016: Implementing different analog input channels is well implemented in the Chi_Mot firmware. Proton Compiler version is now 3.5.8.1
24.06.2016: Key pressure command applied on note repeats is well implemented in the source for <pp2>, <Flex>-blade bending processor.
01.08.2016: For the PIC24 and dsPIC33 microcontrollers we are using the Proton24 compiler ( Version 3.6.0.2) with a PicKit3 programmer.
10.12.2016: The code for the <Bug> generator is a nice prototype for a monophonic synthesizer using variable sampling rate for tone generation.
19.02.2017: The code for <Pi> uses a full digital approach to 3-channel waveform synthesis with ADSR.
21.03.2017: The code for <Rodo> e-drive implements a 12 bit sampler as well as full digital audio power output.
04.04.2017: The code for <Rodo> radar has gesture recognition implemented as well as full buffered midi merging. It also uses the external interrupt feature.
29.05.2017: The code for Thunderwood's storm wind controller is a good prototype for a 3-phase ac induction motor controller.
31.08.2017: The code for Balsi, version 1.0 is a generic 50Hz 3-phase induction motor controller.
10.09.2017: Suspicion of a SWORD implementation bug in the Proton24 compiler. (cfr. dev. of code for 3 phase motorcontrol)
18.10.2017: All 18F2525 processors can be replaced with 18F2620 types.
24.10.2017: The compiler no longer supports the MIN and MAX functions.
03.05.2018: The hub board for <Pos> has a nicely working motor controll for a monophase asynchronous motor.
09.12.2018: The <Balsi> motor control board has frequency measurement and PID for the large siren pitch control.
10.12.2018: Newest version of the Proton compiler ordered from Crownhill. Newest manuals downloaded as well.
18.12.2018: Compiler version 3.6.2.7 (Proton8) and 1.0.5.3 (Proton24). The Proton8 compiler now gives problems with our IRQ coding replacing HSRin and HSRout. The code for Balsi hub is the new supposed to be compatible version for use with the new compiler version. First tests on the oscilloscope looks like it's working again...
15.01.2019: The <Balsi> robot is the first one using only the newest compiler versions.
24.09.2019: Serious problems in getting our multitasker to work with the compiler upgrade. The Balsi trick doesn't seem to work when applied to the 18F4620 damper board for Tubo. Adding a single HRSout instruction in the code appears to be a condition for the serial-in procedures to function.
06.11.2019: Compiler upgrade downloaded. Proton8 is now version 3.7.3.1, Proton24 is version 1.0.6.4. So far, it does not seem to entail source code changes.
08.12.2019: A small change in the coding, but a great improvement on timing precision: see code in the new timer0 interrupt handling for 8-bit PIC's. (example: all Tubo boards) With this code, timing jitter is less than 5 promille. (average jitter is ca. 5us , worst case jitter occuring rarely is 200 us). This coding change also applied to the velo/hold boards on our <Pos> robot.
11.12.2019: Compiler upgrade performed. Proton8 is now version 3.7.3.3 and Proton24 version 1.0.6.6. From now on, if we want HPWM to work on two channels, we have to add declares in the config file!
Declare HPWM1_Pin = PORTC.2
Declare HPWM2_Pin = PORTC.1
12.12.2019: Firmware for Whisper rewritten.
08.02.2020: Firmware for <Flut> is a very good example for a driver for robots. Same principle applied in <So>, version 3.
15.02.2020: Firmwares for Autosax 16-bit pics spread
the load over two processors, with simple data exchange between chips. However,
this did not fully solve the problem of the glitches we seem to have.
03.05.2020: New mono-synth board made, also using two processors, for experiments
and research. This board, october 2020, used for the hunting horn in the <Rumo>
robot.
06.10.2020: Board and firmware made for roaster motor in <Rumo>. We had a 22uH inductance in the Vcc+ analog lead, but this caused oscillations! 100uH cured the problem.
08.10.2020: There seems to be a limit in the nesting of if-then constructions in Proton24 code. <Rumo>-roast code with if-then in the midi-parser does not work. We must use a select-case construction apparently. Ramping works nicely now in this code.
09.11.2020: Switch debouncing, using sampling in the low IRQ and a shift register is handled very well in the code for the horn-motor in the <Rumo> robot. Look into the firmware for the mercury switch version. This is now the <Hunt> robot.
07.12.2020: A bug plaguing almost all code we wrote using
the 24EPxxxMC202 processors solved: to read a combined 32 bit timer, first the
lsb should be read (time.word0 = TMR2) , than the msb via the hold register:
(time.word1 = TMR3HLD). Firmware for <Hunt> , <Bug> and <Pi>
newly uploaded.
12.12.2020: New implementation for ADSR on 24EPxxxMC202 chips: using tmr2 as
sample frequency generator. So far, applied to <Hunt>,<Autosax>,<Bug>,<Flut>.
To be done for <So> as well.
15.12.2020: Applied to <So> as well
17.12.2020: Major rewrite of the 3-channel code for HybrLo. Now at version 2.0
23.12.2020: Three new test and debug boards made for 18F and 24EP series microprocessors.
These new boards have 5p DIN midi connectors for in and out, as well as an on
board power supply.
24.12.2020: Compiler upgrade: now Proton8 version 3.7.3.6
and Proton24 1.0.6.7. At first sight, no changes in the source code seem required.
Soldering...
19.01.2021: Firmware for the pitch chips (24EP-series) updated on <Flut>,<Hunt>,<Autosax>,<So>,<Bug>.
Vibrato is now reliable on all of them.
10.03.2021: PIC firmware still to be uploaded in
the 24EP chips on the following robots (cfr. bug cured 07.12.2020): Tubo (motors),
Rumo (motor), 2-Pi, Balsi, Pi, Mirrored-X, HybrLo, Rodo (sensor and e-drive),
Thunderwood (Storm), Aeio (parser and radar). The source code is allready upgraded.
01.04.2021: Start coding for <RorO>. Finished
july 2021.
30.06.2021: <Trumpeter> finished. Delayed
vibrato implemented.
10.10.2021: <Cornalto> finished. Note attack
wave implemented.
14.10.2021: Revision and upgrade of the hub code
for <Klar>
02.11.2021: Coding for <Shak> - compilation
o.k. with the latest compiler
03.11.2021: Compiler upgrade. Proton8 has become
Positron8 and Proton24 became now Positron16. Required changes: 'Optimiser_level
= 3' has to become DECLARE Optimiser_level = 3
12.01.2022: Coding for <Steely>: here we implemented dead-times after
pulses to protect duty cycle restrictions.
13.01.2022: Shouldn't we start studying and using the dsPIC33FJ128GP802 This
exists in 28 pins DIP, has 12 bit ADC and 16 bit DAC (stereo) on board...
06.02.2022: MPLAB upgraded.Now we are using version IPE
and IDE 6.00. Previous version was 3.35. The new version supports the PICkit4
programmer, which we also bought and installed.
20.03.2022: 10 16 bit PIC's for <3Pi> programmed and tested o.k.
16.05.2022: 18 16 bit PIC's for <4Pi> programmed and tested.
11.11.2022: Further work on 3-channel synth code for hooters in Rumo.
26.11.2022: Firmware for the Melauton PIC's upgraded. (10-bit PWM and better
motor control algo). This code no longer uses Gosub's but has procedures and
functions instead.
15.12.2022: Firmware for <Troms> redesigned. Now also with dead-times
after pulses.
20.03.2023: New hub board made for <Kazumi>. Firmware o.k. with Positron
compiler.
23.05.2023: 8-channel PWM code written and tested for the sire board used in
<Rumo>.
14.10.2023: Code for PSCH rewritten. Now version 3.0
22.01.2023: Hub code for <Pianet> rewritten. Now using 10-bit PWM for
Vactrol VCA control.
05.03.2024: <Teno> added, version 1.0 Valve board with pulse/hold and
2-chip synth board. With note wave attack and delayed vibrato as on Cornalto.
New implementation for controller 17 and for velocity.
26.08.2024: <Cemba> added, version 1.1. This one
is exported to Berlin for Marc Sinan.
Compiler website for downloads and upgrades:
Debugging and programming board made (for 18F series controllers):
2002
PCB
Programmer: Microchip PICkit 2, USB & Microchip PICkit 3, USB.
Debugging and programming board made (for 24EP and ds33EP series controllers):
01.08.2016
PCB
Programmer: Microchip PICkit4 or Microchip PICkit 3, USB
A short article describing the latest debugging and programming boards we designed can be found here.
